Inverted Routine Microscope Eclipse Ts2

Nikon’s all-new inverted routine microscope featuring a compact footprint, newly developed contrast observation method and improved operability.

New compact inverted routine microscope that does more than ever before!
Utilizing Nikon’s industry-leading CFI60 optical system and LED illumination for both diascopic and epi-fluorescence imaging, the new Eclipse TS2 microscope offers brilliantly clear images, enabling more efficient cell culture observation and documentation. Furthermore, a newly developed contrast observation method and streamlined operation enhance its use for routine laboratory work.

Compact, Streamlined Body for Efficient Observation

Two models are available to meet your needs; a diascopic illumination model, the Eclipse Ts2, and an epi-fluorescence illumination model, the Eclipse Ts2-FL.

The compact, stable and durable body on both models conserves precious bench space and easily fits next to the incubator or inside a tissue culture hood.

Ts2R

Eclipse Ts2R Diascopic illumination model

Ts2RFL

Eclipse Ts2R-FL Diascopic and Episcopic illumination model





















Better Observation with LED Illuminator

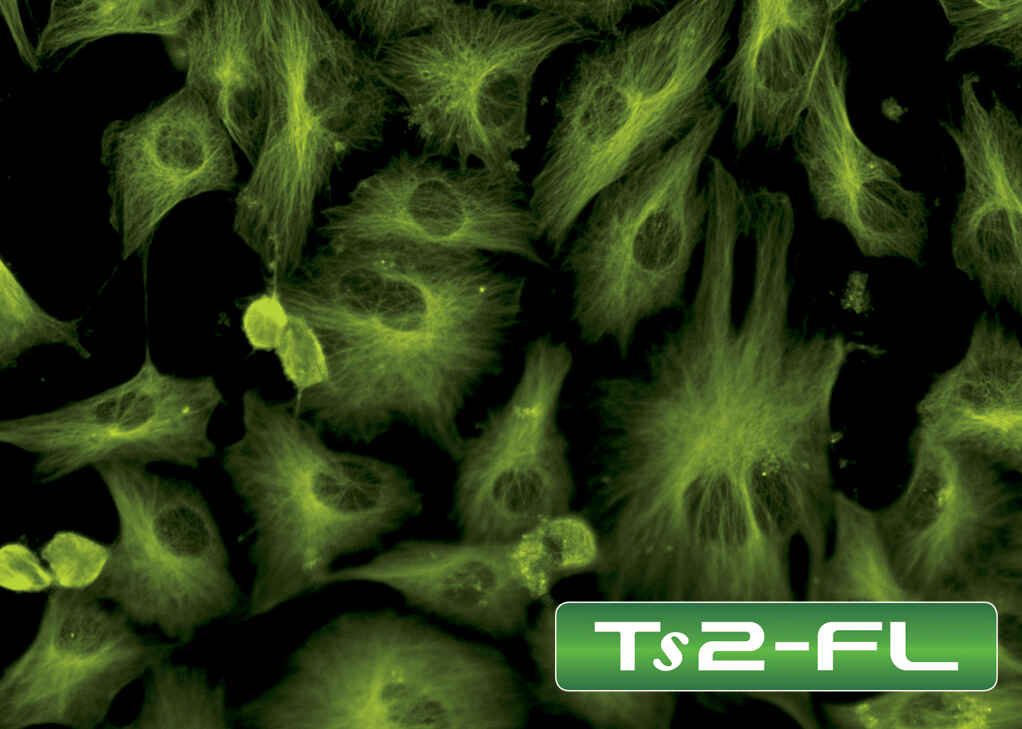

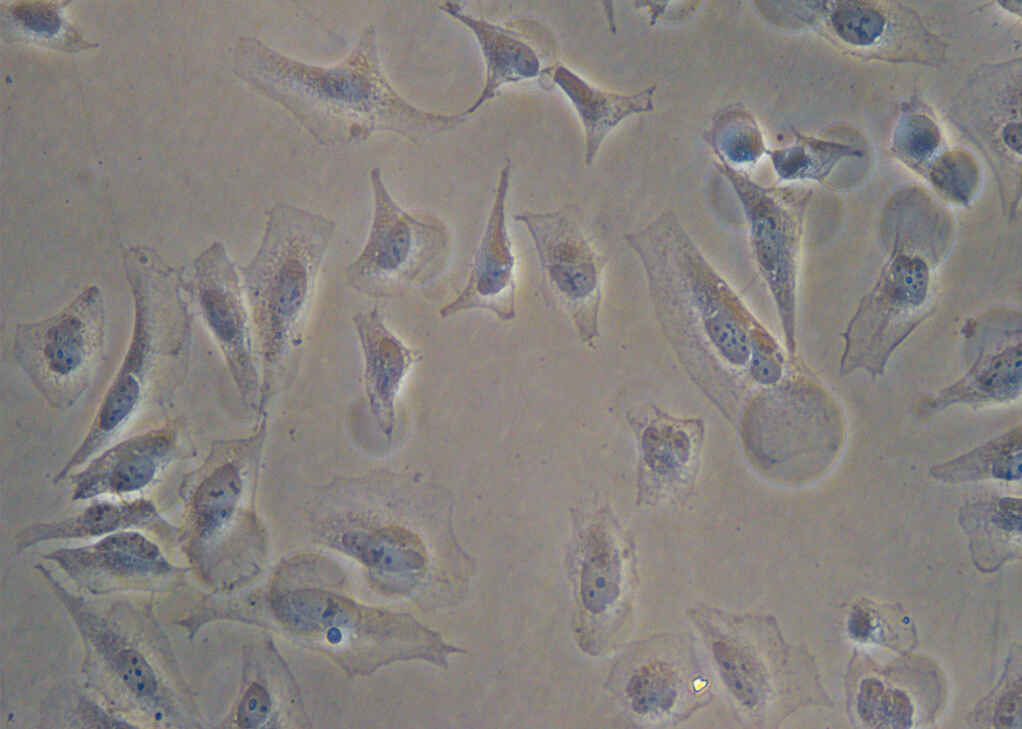

The new Eclipse TS2 microscope provides LED-based diascopic and epi-fluorescence illumination. LED illumination eliminates frequent bulb replacement and alignment and requires no warm-up time allowing for quick and efficient cell culture observation.

pic_03  pic_04

Streamlined Operation

Buttons for turning light sources on/off and switching between diascopic and epi-fluorescence observation are located within easy reach, at the front of the microscope body, enabling intuitive operation of these functions during sample imaging. The ECLIPSE Ts2-FL model provides separate zones for controlling diascopic and episcopic illumination with diascopic controls located on the left side and epi-fluorescence controls on the right side of the main body.

pic_05

New mechanical stage accommodates a wide range of flasks and cell culture chambers. The new stage design also directly accommodates 96-well plates.

pic_06

New Contrasting Technique, “Emboss Contrast” for Economical and Easy Observation

Newly developed Emboss Contrast is cost effective and provides easy observation with simple operation. Emboss contrast provides pseudo-three dimensional, high-contrast images and is suitable even for thick samples such as iPS cells which are normally difficult to observe with conventional phase contrast methods. Additionaly, Emboss Contrast is compatible with both glass and plastic culture chambers.

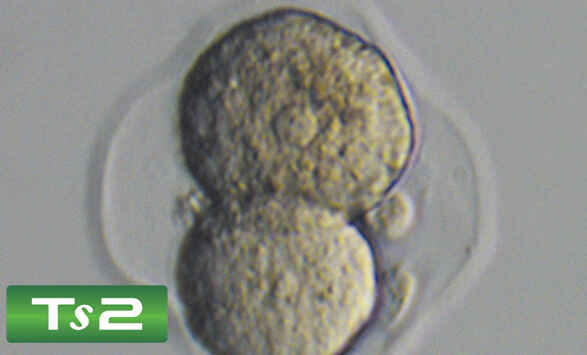

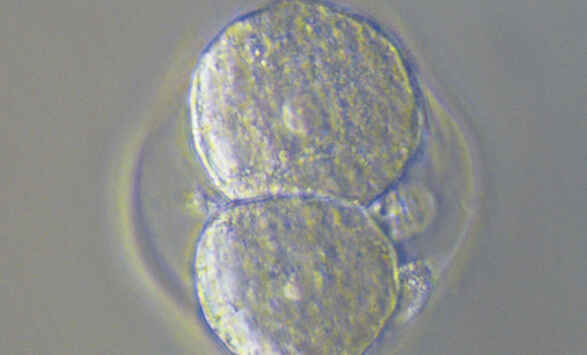

namc  emboss
NAMC/20x                                                           Emboss contrast/20x
New Contrast Shield for High S/N Epi-Florescence Observation in Bright Rooms
The new Contrast Shield accessory (optional) blocks room light, providing an easy and cost-effective method for achieving high signal-to-noise fluorescence observation in a typical, brightly lit culture room.
contrast-shield
Model Ts2R Ts2R-FL
Optical System CFI60 Infinity Optical System
Observation Bright Field, Apodized Phase Contrast, Phase Contrast, Nikon Advanced Modulation Contrast, DIC, Emboss Contrast Bright Field, Apodized Phase Contrast, Phase Contrast, Nikon Advanced Modulation Contrast, DIC, Emboss Contrast, Epi-Fluorescence
Diascopic illumination High luminescent white LED illuminator (Eco-illumination), Built-in Fly eye lens
Episcopic illumination LED illuminator, built-in Fly eye lens,can be configured with up to 4 different fluorescence LED units; available wavelengths:385, 455, 470, 505, 525, 590, 625 nm
Tube ·         Binocular tube: Inclination: 35 degree·         Ergonomic tube: Inclination:15-35 degreeSiedentopf type, Pupillary distance: 50-75 mm
Eyepiece(F.O.V.) 10x (22), 12.5x (16), 15x (14.5)
Focusing Via nosepiece up/down movement, Stroke (manual): Up 8 mm, down 3 mmCoarse stroke: 5.0 mm per rotation, Fine stroke: 0.1 mm per rotation, Coarse motion torque adjustable, Refocusing mechanism mounted
Nosepiece Sextuple nosepiece, With DIC prism slots
Condenser Condenser turret, mount up to 7 modules: Phase Contrast, DIC, NAMC, IMSI, Emboss Contrast and ND for Bright FieldUse with any one of ELWD condenser lens, LWD condenser lens and NAMC condenser lens
Slider ·         Precentered or Centering PH Slider, 10x, 20x, 40x Objectives available for Phase Contrast·         Emboss contrast sliders(eyepiece-tube-side slider must be mounted), 10x, 20x, 40x, 60x objectives available for emboss contrast
Stage ·         Plain Stage, Stage Size 260 (X) x300 (Y) mm·         Rectangular Mechanical Stage Stroke: 114 (X) x73 (Y) mmAdjustable XY stroke limitAccepts 8 types of micro-testplate
Holder ·         C-S-HP35 Petridish Holder 35 mm·         C-S-HLP100 Petridish Holder 100 mm·         C-S-HT Terasaki Holder for Terasaki holder and φ65 dish·         C-S-HS Slide Glass Holder for glass slides, φ54 dish and hemocytometer·         C-S-HU Universal Holder for Terasaki plate holder, glass slide, φ35-65 dish and hemocytometer·         C-S-HG Glass Ring Holder

·         C-S-HLS Ring Holder Set

·         TC-S-HA Acrylic Holder

Epi Fluorescence attachment? Epi-fluorescence filter turret (with main body)Filter cubes with noise terminator mechanismConfigure with up to 4 Epi-fluorescence filter cubes, one position is used during bright-field observationAttachable Contrast Shield (optional; LWD,ELWD)
Dimensions 286 (W) ×495 (D) ×542 (H) mm 286 (W) ×495 (D) ×542 (H) mm
Weight(approx.) 17kg 18kg
Rated Voltage/Electric Current 100V-240V, Less than 0.65A
Power Consumption (nominal value) 30W
