Our strongest, most powerful light source
The LED light source in the LS-HP1 series offers extremely high power for a specific single wavelength. This, along with its high luminance and its very long lifetime, make it a highly efficient and powerful point light source.
Single wavelength fiber-coupled LED light sources
Narrow bandwidth, high luminance: The LS-HP1

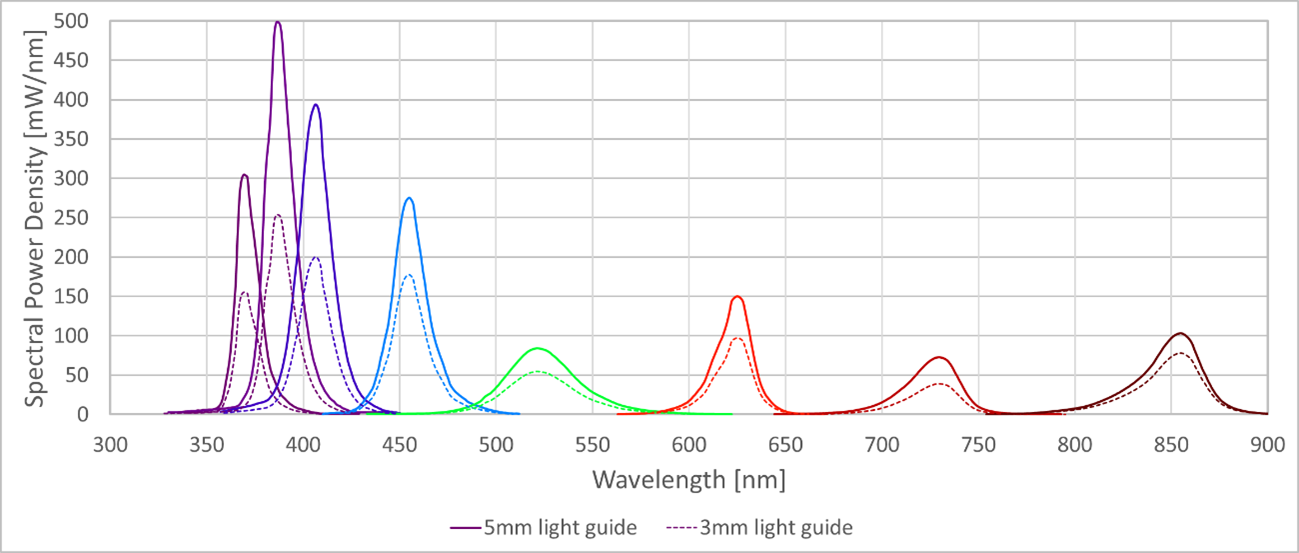

The LS-HP1 series supports many different wavelengths. For details please refer to the table in data sheet.
The LS-HP1 is a series of high-power, high brightness light sources for liquid light guides (LLG). It is characterized by its outstanding luminance and thus delivers very high light output from liquid light guides. The LS-HP1 works with the latest generation of high-power LEDs with up to 100W power from an area of less than 15mm². With the LS-HP1 series, we achieve the highest luminance levels through optimized optical coupling into the liquid light guide without heating it up too much. The LS-HP1 is available for liquid light guides with core diameters of 3 or 5mm
| Optical output | Version for 3mm and 5mm liquid light guide available |
| Wavelength range | 365nm, 380nm, 405nm, 415nm, 450nm, 530nm, 613nm, 735nm, 780nm, 850nm, 940nm |
| Operation | RS232 (COM-Port) via USB (type B) |
| Trigger input | TTL-level trigger or digital modulation via SMA connection |
| Outputs | Selectable output signals via SMA connection; signal reference (TTL), current monitor or input signal looped through |
| Power supply | External power supply 24V DC, 9.0A (included), connection: Kycon KPJX-4S, power consumption approx. 150W max. at 100% (depending on the selected LED) |
| Lifetime | > 40,000 hours |
| Dimensions and weight | 254mm (L) x 200mm (W) x 120mm (H) without user controls and connections, 2350g |
| Light output | Up to 7,2W from 5mm LLG |
