LED light sources in the LS-MC1 series provide a constantly growing selection – currently amounting to over 20 – of narrow band single wavelength LEDs with a bandwidth of 15-50 nm FWHM, allowing precise work in a defined wavelength range. As a result of optimized optical coupling into the optical fiber – as with all of our light sources – with our LS-MC1 series we have achieved the highest possible luminance. The advantage of directly emitting monochromatic LEDs is their very high level of efficiency, because the entire radiated output is in the useful wavelength range.

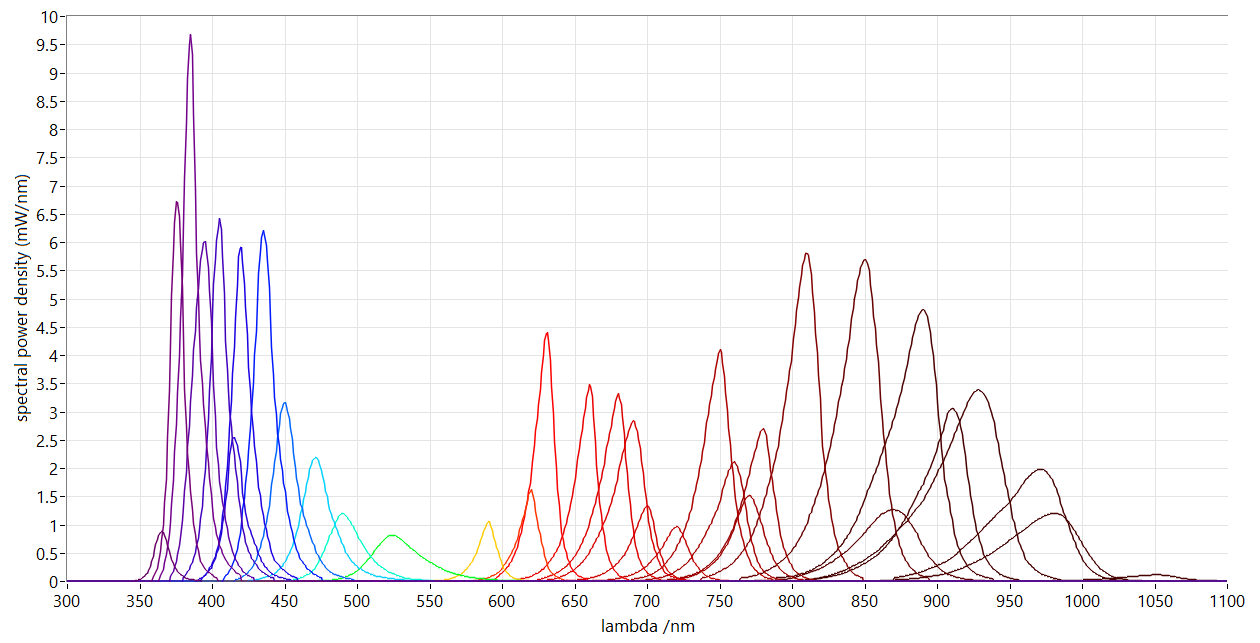

The LS-MC1 series supports many different wavelengths. For details please refer to the table in data sheet.
| Optical output | SMA optical fiber output (other available on request) |
| Wavelength range | 20+ wavelengths available, see table
(measurement protocol available, wavelength selection available on request)¹ |
| Operation | RS232 (COM-Port) via USB (type Mini-B) |
| Trigger input | TTL, to 100 kHz, SMA connector |
| Outputs | Signal/current monitor or sync interface to additional light sources, SMA connector Input/output options for functions tailored to customer requirements |
| Power supply | 12 V DC, 2.5 A, power consumption approx. 20 W (@100% performance) |
| Lifetime | > 10,000 hours |
| Dimensions and weight | 125 x 110 x 60 mm³, 450 g |
| Light output | 30 – 200 mW (from 1 mm fiber), see table |
