ioLight – 2 mm Microscope and XY Stage

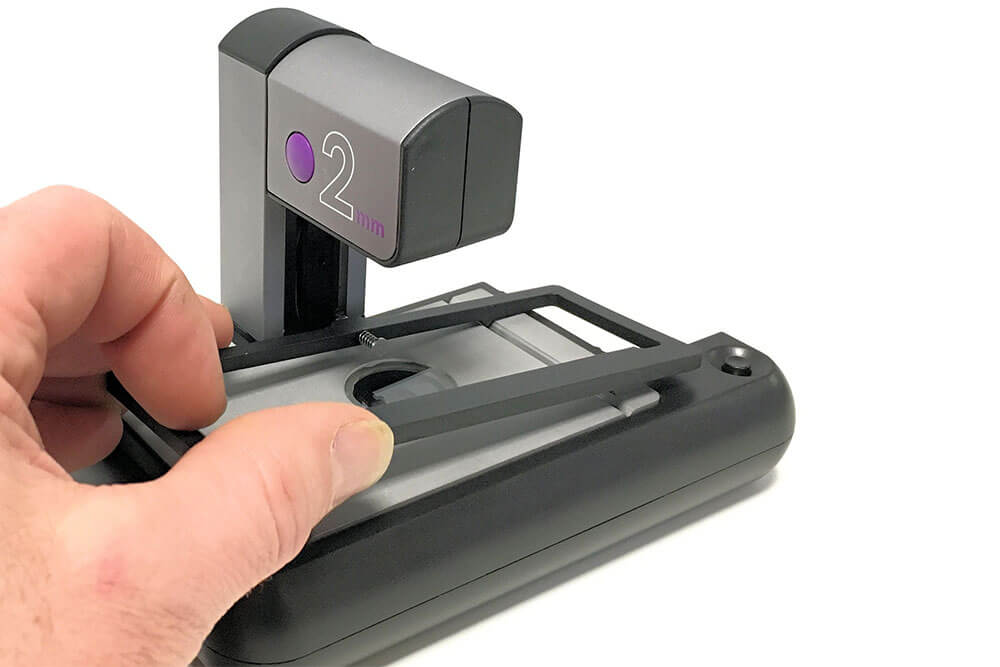

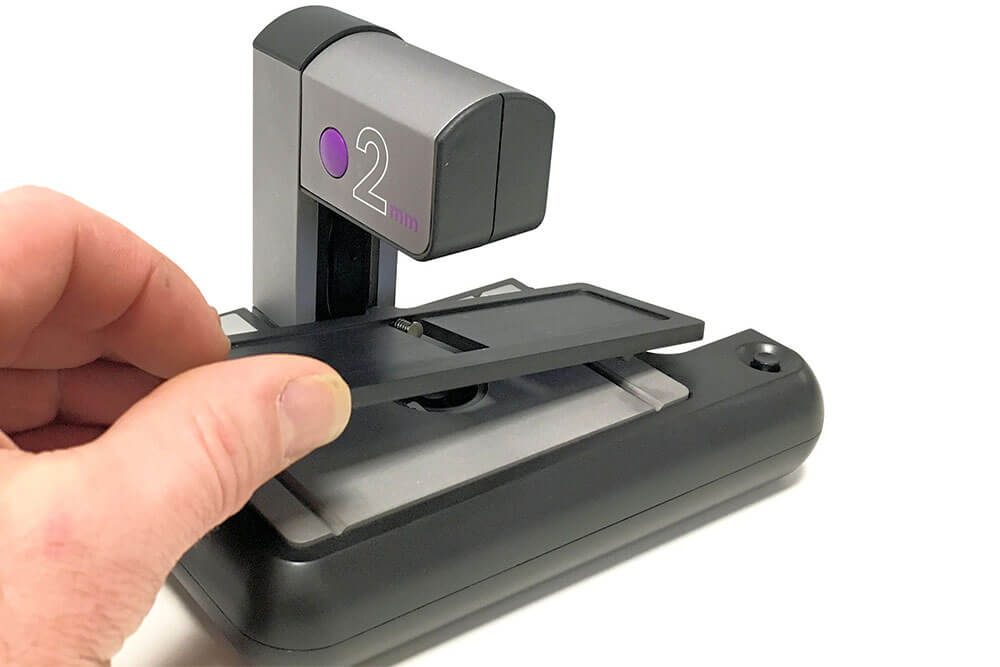

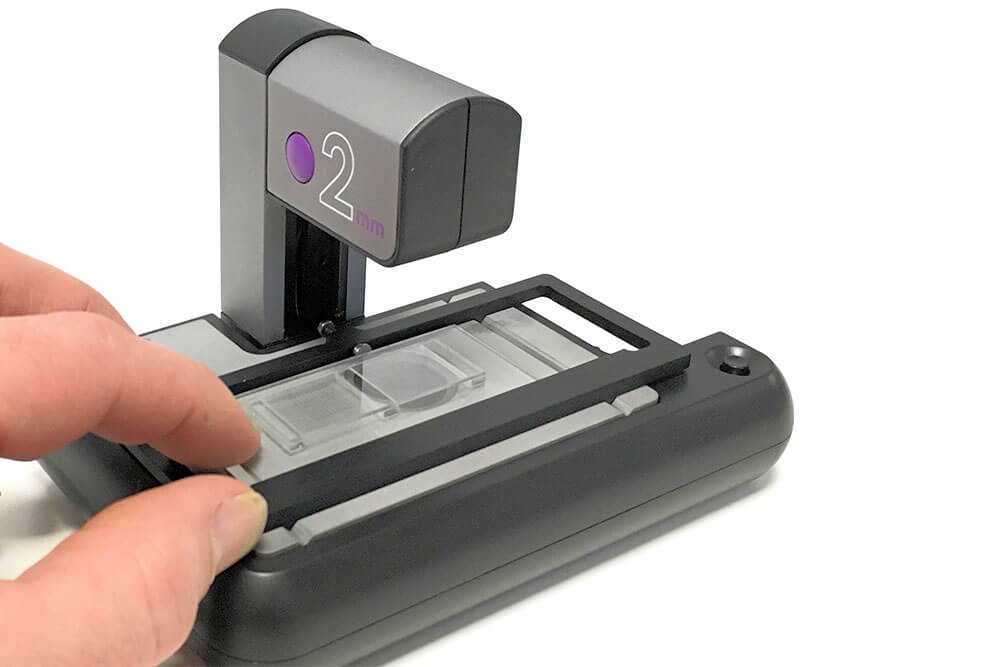

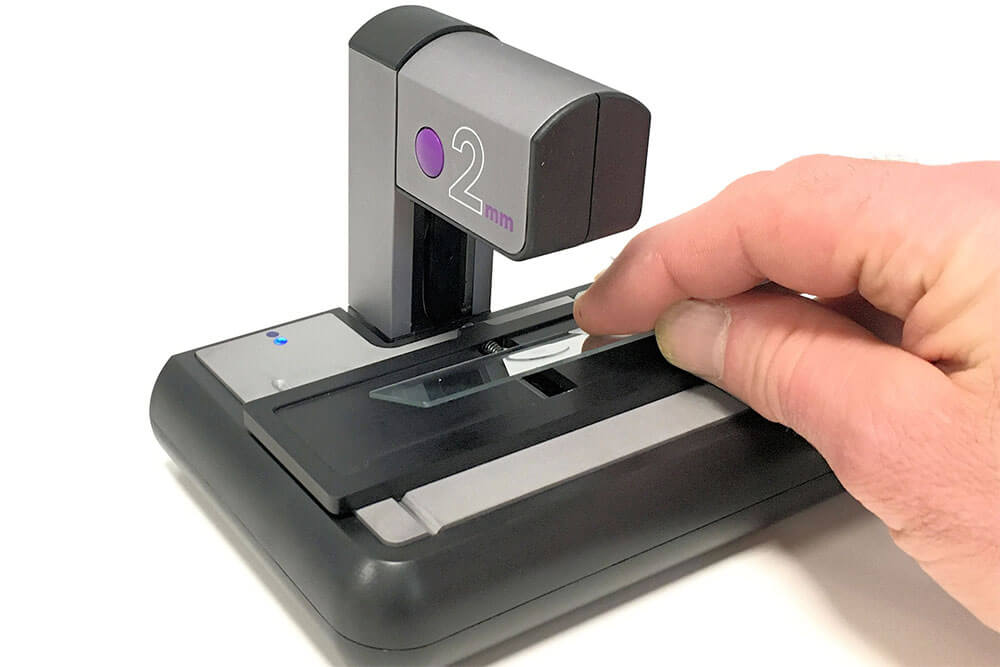

Portable microscope with XY stage, 2mm field of view

  • 2mm field of view microscope as above with XY stage
  • Suitable for methodically scanning counting chambers and slides
  • Ideal for worm egg counts
  • Robust and easy to clean


Magnification: x150 Field of view 2mm fixed width

Working distance: 2.5mm from lens to sample

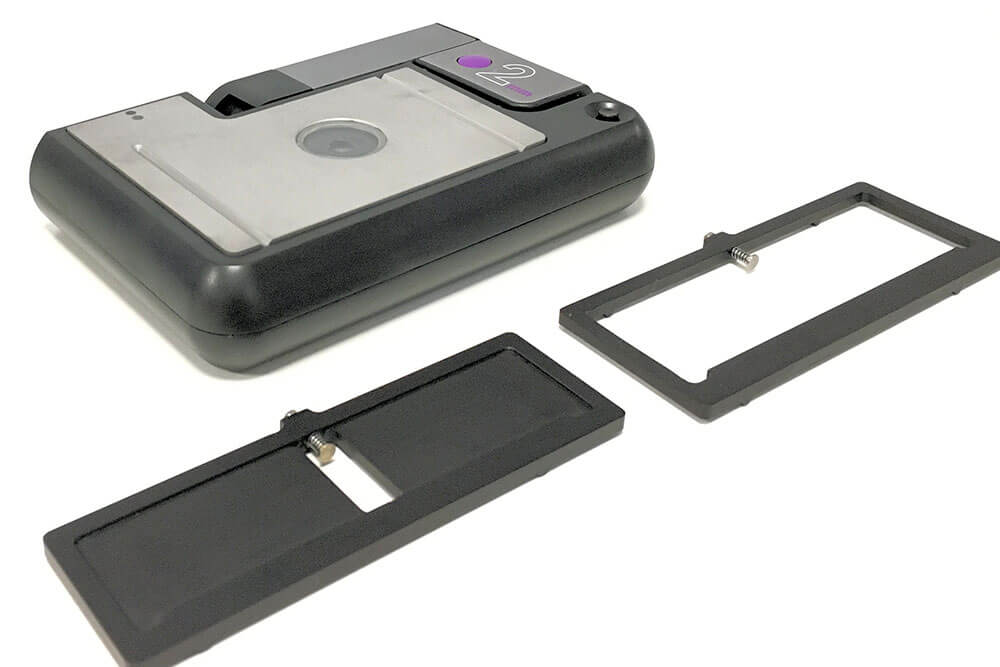

Slide or counting chamber: Supplied with carriages for either 25mmx75mm, 1”x3” slides or counting chambers and 32mmx75mm/3” counting chambers.
Can be used without the carriage, in the same way as the standard 1mm and 2mm microscopes

Illumination: Adjustable top and bottom illumination

Sample stage: Stainless steel

Display: Smart phone, tablet or computer with WiFi
Direct connection, no WiFi infrastructure or router is required (internet is not required)

Image sharing: On a smartphone or tablet, images and videos are stored in the gallery / camera roll for easy sharing.

On a computer, images and videos are stored in the web browser’s downloads folder.

ioLight App: Free for download from the Apple® or Google Play® app store

Image format: 5MP (2592 x 1944 pixels); JPEG; colour

Video format: MPEG-4; colour; up to 1296 x 972; 10 fps

Folded Dimensions: 160mm x 101mm x 37mm with carriage
Operating Dimensions: 160mm x 101mm x 107mm
Weight 600g with 1 carriage and protective pouch

Power supply: Integrated Li-ion rechargeable battery USB charger (supplied)
