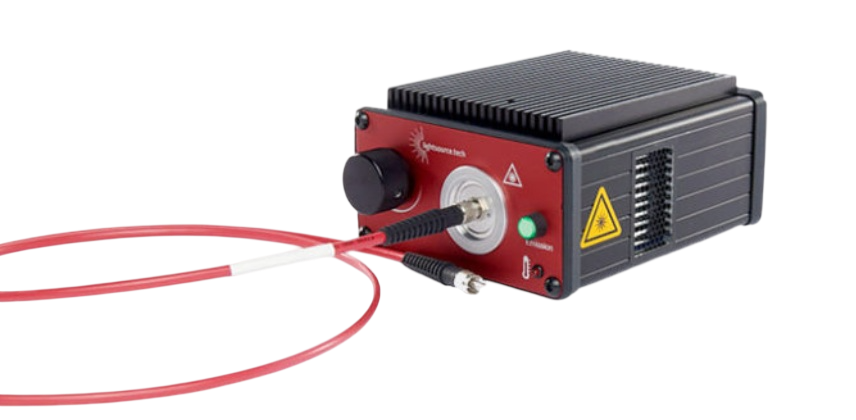

LS-WL1 – Laser-Driven White Light Source

Laser-pumped white light source

A highly efficient and extremely bright point light source: LS-WL1

LS-WL1 is a laser-pumped white light source with a light output of up to 440 mW from a 600-µm fiber and a wavelength range of 450 – 700 nm, designed especially for professional requirements for extremely high luminance.

Key Features

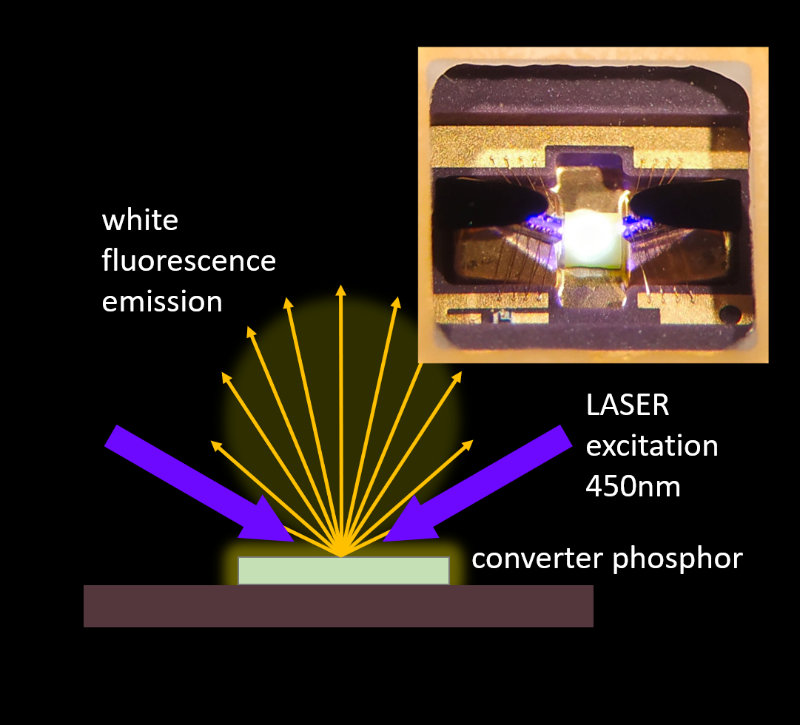

  • Laser-pumped phosphor white light technology
  • Extremely high luminance from a compact point source
  • Broadband wavelength range: 450–700 nm
  • Up to 440 mW optical output from a 600 μm fiber
  • Compatible with 50 μm–1 mm multimode optical fibers
  • Adjustable output power from 1–100%
  • Programmable continuous, trigger, and stroboscope modes
  • Switching frequency up to 200 kHz
  • USB / RS-232 communication
  • Compact design (125 × 110 × 60 mm)
  • Efficient thermal management with dual cooling fans and integrated temperature monitoring

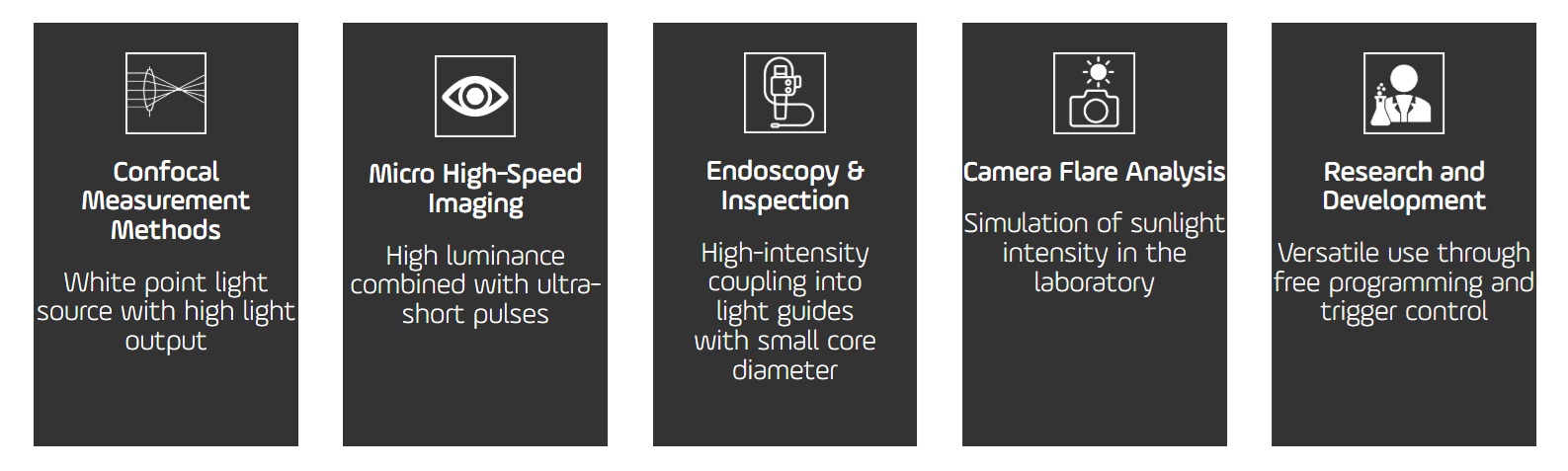

One Light Source, Many Uses: LS-WL1

Product Specifications

Optical output SMA fiber adapter
Wavelength range 450 – 700 nm
Interface RS232 (COM port) via USB (type Mini-B)
Trigger input TTL, to 200 kHz, SMA connector
Outputs Signal/current monitor or sync interface to additional light sources, SMA connector.
Input/output options for functions tailored to customer requirements
Power supply 12 V DC, 2.5 A, power consumption approx. 20 W (@100% power)
Lifetime >8.000 hours*
Dimensions and weight 125 x 110 x 60 mm³, 450 g
Light output Adjustable 1-100%, 440 mW from 600 µm fiber (NA 0.5)
Thermal management Dual high-performance fans, integrated temperature sensor (readable), automatic power down at a programmable temperature limit (standard configuration: 10 – 30°)
*for typical use; lifetime depends on ambient temperature, power level, duty cycle, frequency and wavelengths (where applicable), and is defined as 75% of initial power. Values given do not include ageing/deterioration/solarization of fibers, liquid light guides, etc.
