Laser-pumped high-power white light source
More brightness for demanding optical applications: the LS-WL2
The LS-WL2 expands our range of laser-pumped white light sources with a particularly powerful variant: when used with a 1 mm fiber, it delivers 1 watt of optical output power, providing more than twice the brightness of the proven LS-WL1.
One Light Source, Many Uses: LS-WL2

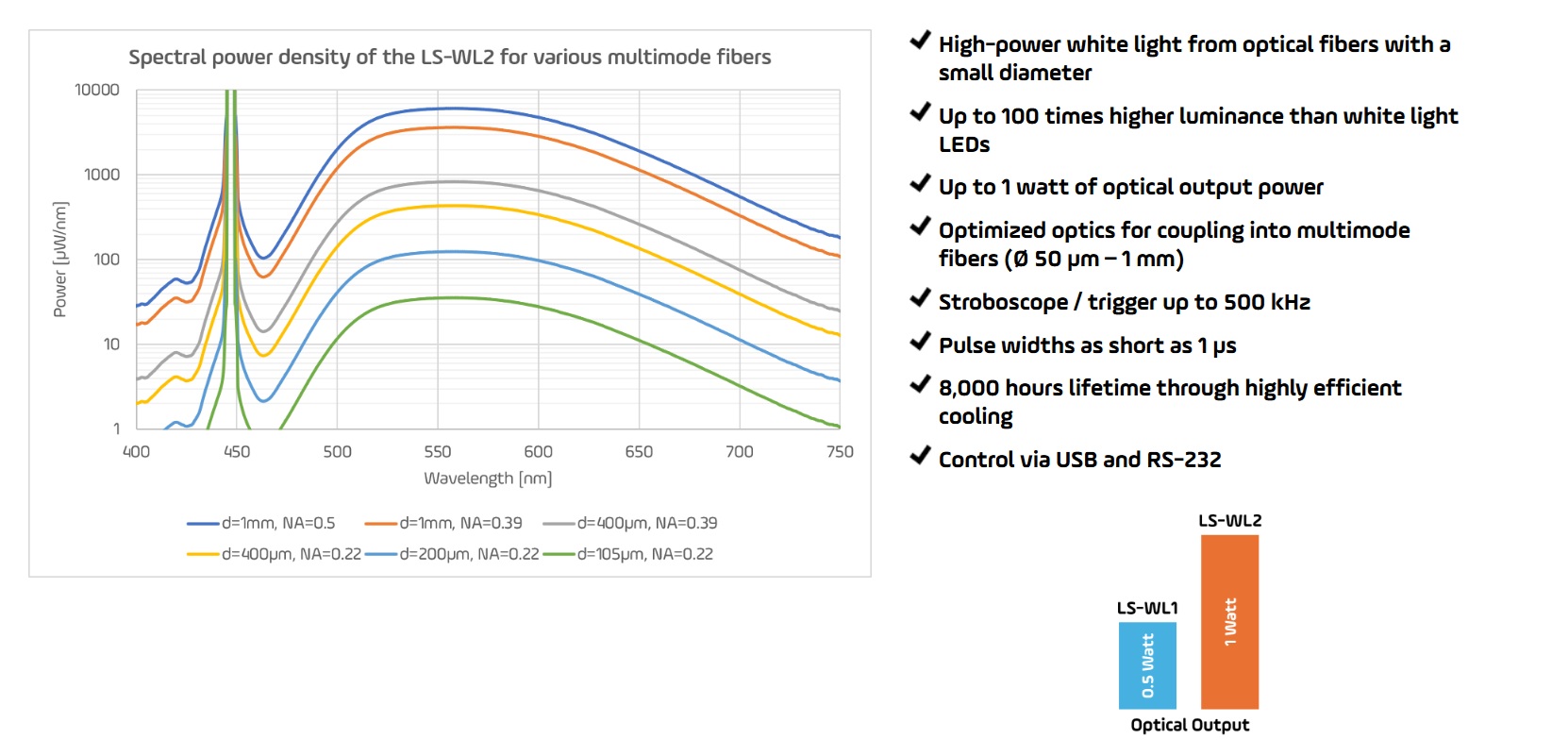

Spectral power density
| Optical output | SMA fiber adapter |
| Wavelength range | 450 – 700 nm |
| Interface | RS232 (COM port) via USB (type Mini-B) |
| Trigger input | TTL, to 500 kHz, SMA connector |
| Outputs | Signal/current monitor or sync interface to additional light sources, SMA connector. Input/output options for functions tailored to customer requirements |
| Power supply | 12 V DC, 3.0 A, power consumption approx. 30 W (@100% power) |
| Lifetime | >8.000 hours* |
| Dimensions and weight | 125 x 110 x 60 mm³, 450 g |
| Light output | Adjustable 1-100%, 1.0 W from 1000 µm fiber (NA 0.5) |
| Thermal management | Dual high-performance fans, integrated temperature sensor (readable), automatic power down at a programmable temperature limit (standard configuration: 10 – 30°) |
