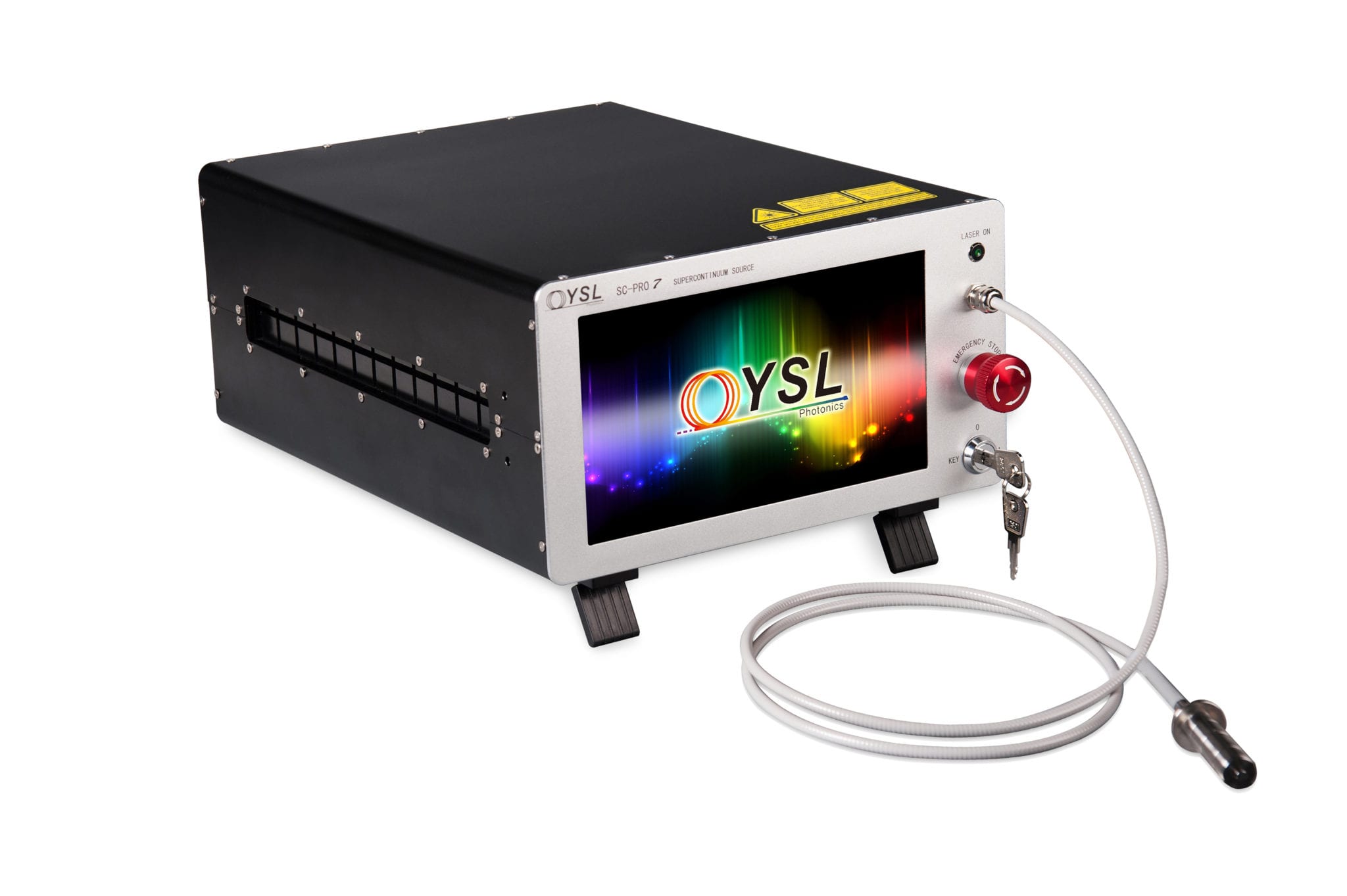

YSL Supercontinuum Source SC-PRO-7

YSL Photonics’SC-Pro 7 is the latest high power supercontinuum source with variable repetition rate from 10kHz to 200MHz. It delivers a wide spectral output ranging from 430nm to 2400nm with up to 20W total power. It provides optional 1-80MHz external triggerable function which is an ideal source for locking to the mode-locked laser for pump-probe application. SC-Pro 7 offers >1.5uJ pulse energy (@1MHz), making it the ideal source for super resolution microscopy. The 10kHz to 200MHz repetition rate capability makes it an ideal source for the applications such as low noise OCT, fluorescence microscopy, nanophotonics and etc.

Applications of YSL Supercontinuum Source SC-PRO-7:


● Fluorescence Spectroscopy and Microscopy

● Nanophotonics

● Super-Resolution Imaging

● Photocurrent microscopy

● Photoacoustic Microscopy


● Total power: up to 20W

● Internal Repetition Rate: 0.1-200MHz

● External Triggerable: 1-80MHz

● Wavelength: 430nm-2400nm

● Pulse Energy: >1.5uJ

● Single-Mode Output

● NIM trigger signal output, externally triggerable
