ioLight – 1mm Microscope and XY Stage

Portable Microscope with XY stage, x400 1mm field of view, 1µm high resolution

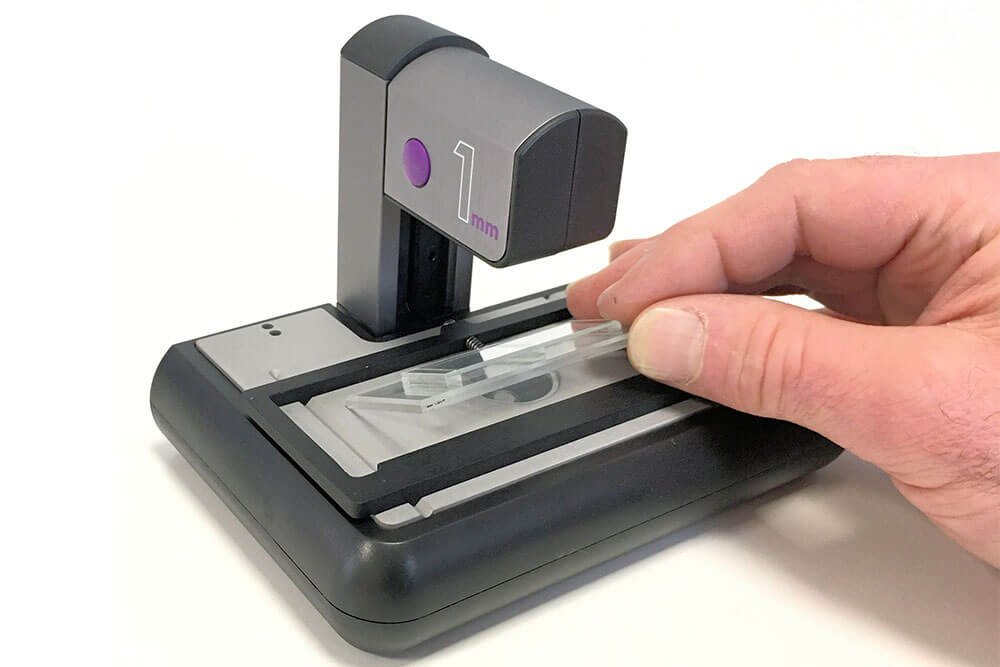

  • 1mm field of view microscope as above with XY stage
  • Suitable for methodically scanning slides
  • Ideal for counting cells and other small objects
  • Robust and easy to clean

Magnification: x400 Field of view 1mm fixed width

Resolution: 1µm (0.001 mm)

Working distance: 1mm from lens to sample

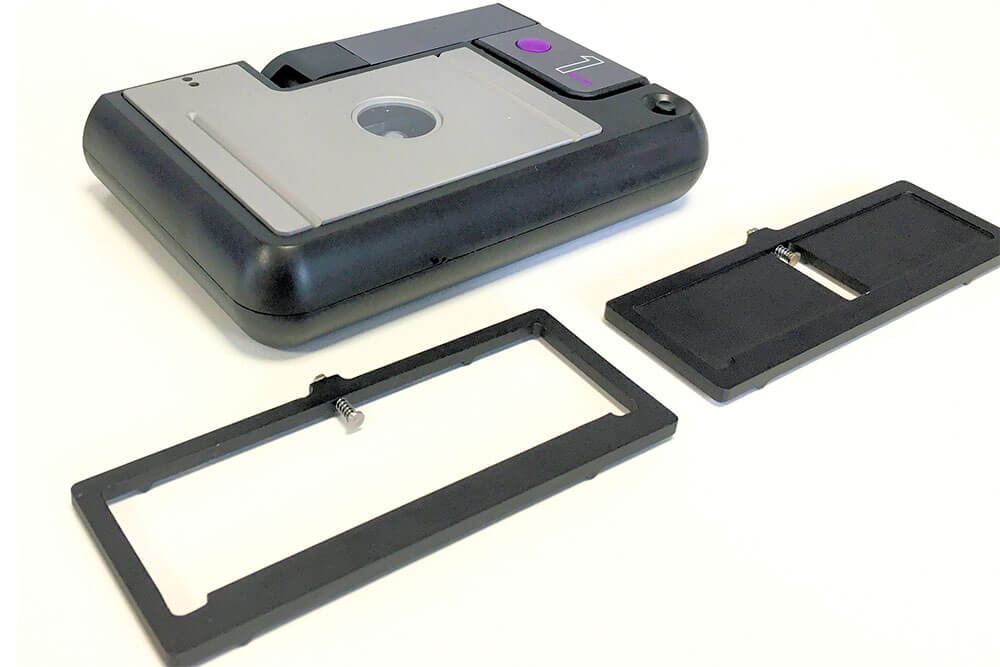

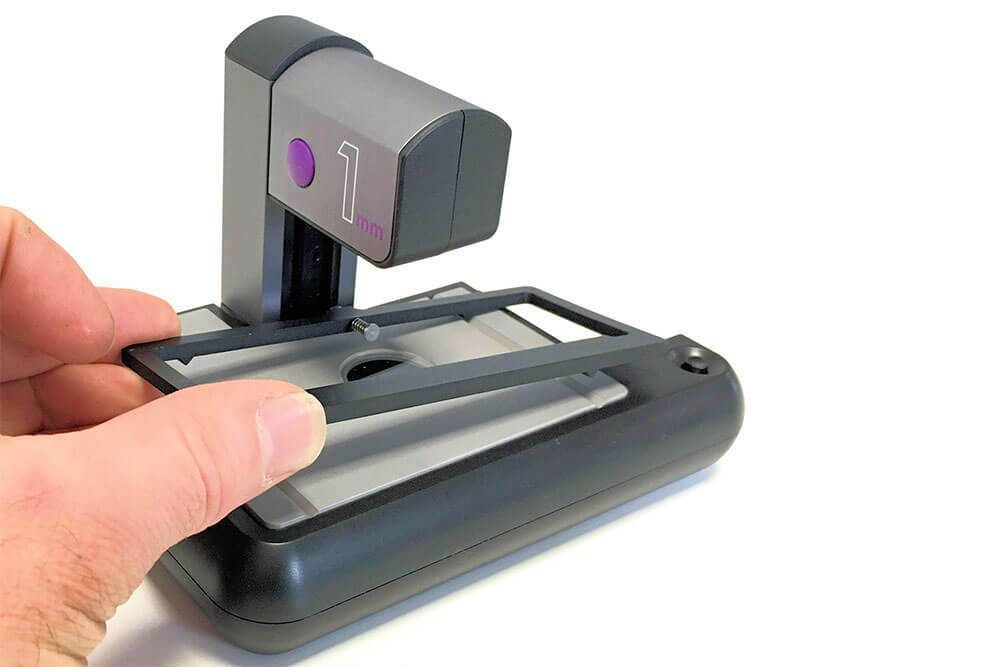

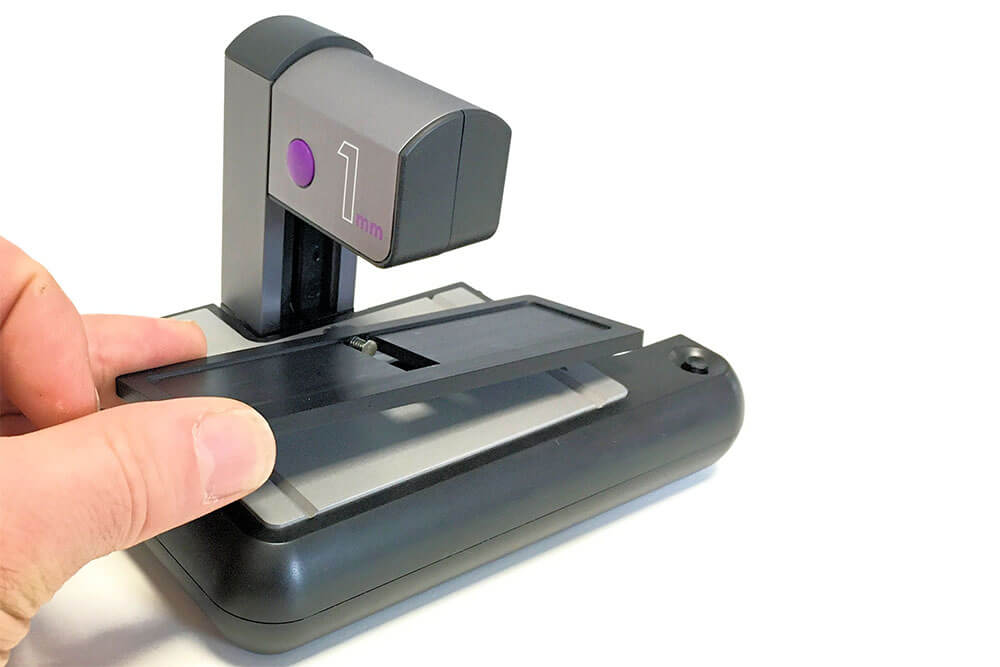

Slide or counting chamber: Supplied with carriages for either 25mmx75mm, 1”x3” slides or counting chambers and 32mmx75mm/3” counting chambers.
Can be used without the carriage, in the same way as the standard 1mm and 2mm microscopes

Illumination: Adjustable top and bottom illumination

Sample stage: Stainless steel

Display: Smart phone, tablet or computer with WiFi
Direct connection, no WiFi infrastructure or router is required (internet is not required)

Image sharing: On a smartphone or tablet, images and videos are stored in the gallery / camera roll for easy sharing.
On a computer, images and videos are stored in the web browser’s downloads folder.

ioLight App: Free for download from the Apple® or Google Play® app store

Image format: 5MP (2592 x 1944 pixels); JPEG; colour
Video format: MPEG-4; colour; up to 1296 x 972; 10 fps

Folded Dimensions: 160mm x 101mm x 37mm with carriage
Operating Dimensions: 160mm x 101mm x 107mm
Weight: 600g with 1 carriage and protective pouch

Power supply: Integrated Li-ion rechargeable battery USB charger (supplied)
