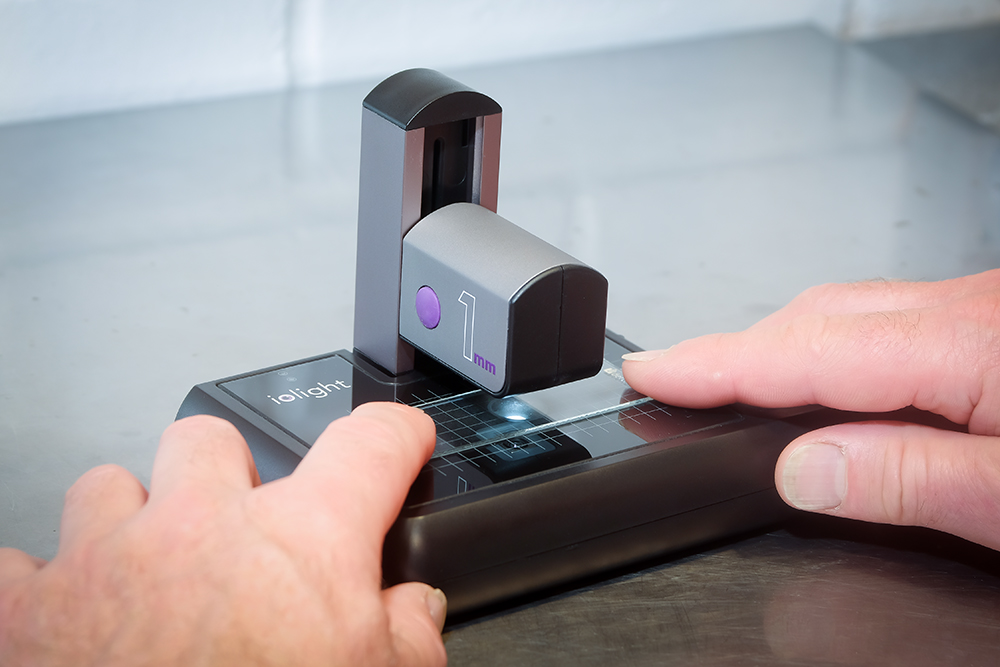

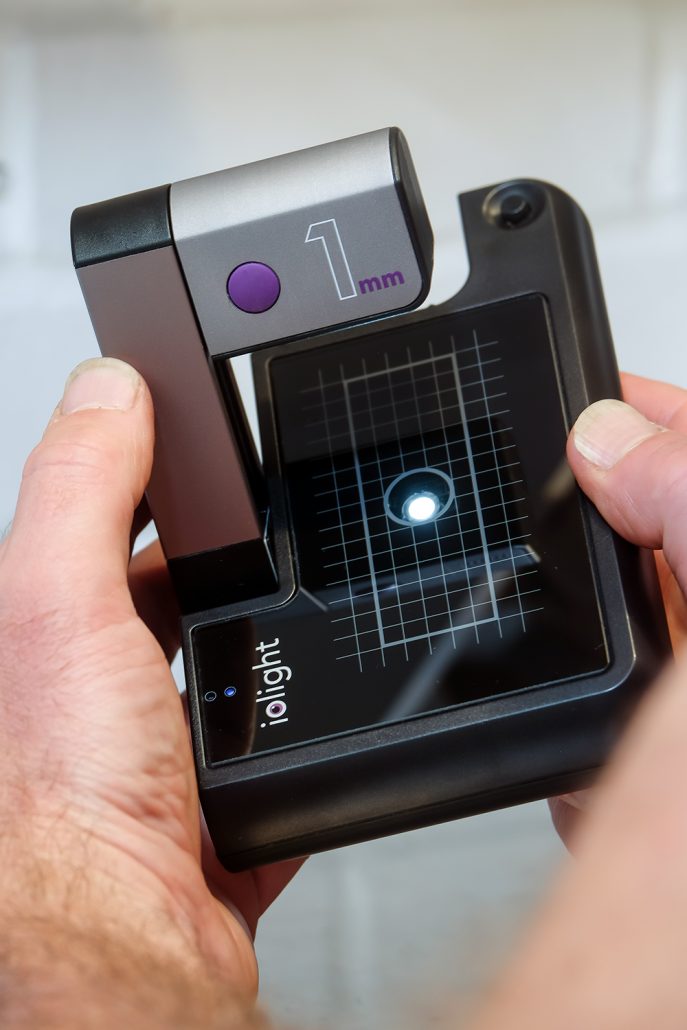

iolight 1mm Microscope

Portable microscope 1mm field of view

  • 1  micron resolution images shared to your phone
  • High magnification, views animal and plant cells clearly
  • Highly portable: Used in The Amazon, The Antarctic, Kazakhstan and on Mount Everest

Magnification: x400 Field of view 1mm fixed width

Resolution: 1µm (0.001 mm)

Working distance: 1mm from lens to sample

Illumination: Adjustable top and bottom illumination

Sample stage: Glass

Display: Smart phone, tablet or computer with WiFi

Direct connection, no WiFi infrastructure or router is required (internet is not required)
Image sharing: On a smartphone or tablet, images and videos are stored in the gallery / camera roll for easy sharing.

On a computer, images and videos are stored in the web browser’s downloads folder.

ioLight App: Free for download from the Apple® or Google Play® app store

Image format: 5MP (2592 x 1944 pixels); JPEG; colour

Video format: MPEG-4; colour; up to 1296 x 972; 10 fps

Folded Dimensions: 160mm x 101mm x 32mm
Operating Dimensions: 160mm x 101mm x 107mm
Weight: 440g with neoprene case

Power supply: Integrated Li-ion rechargeable battery USB charger (supplied)
