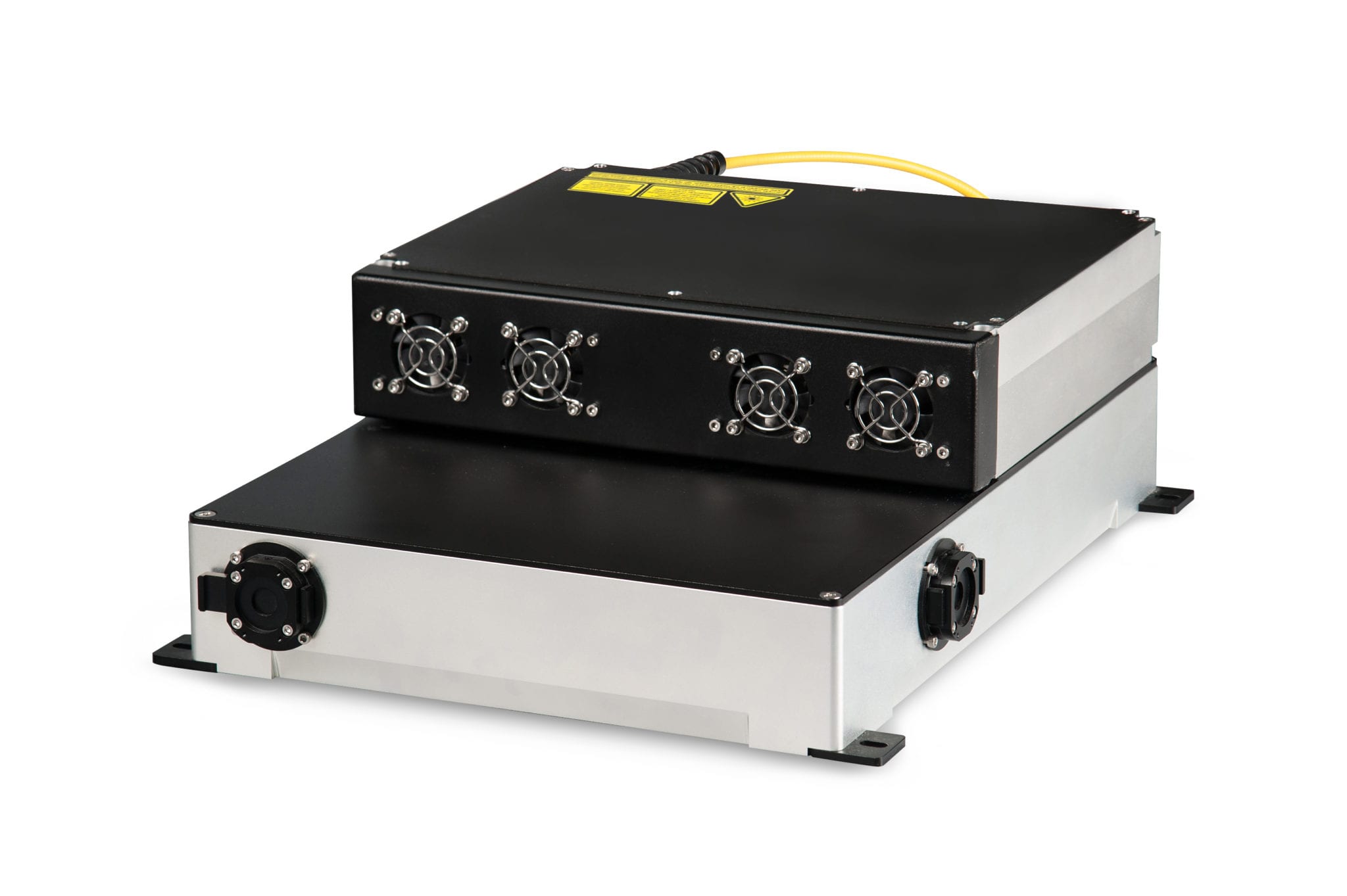

YSL Photonics’PicoYL-20 has a continuously tunable pulse duration from 200ps to 2ns and repetition rates from 30 kHz up to 1 MHz. The short pulse duration, high repetition rates combined with over 150kW peak power give high speed, permanent black/color marking on a variety of metals, thin film coating and thermal sensitive materials. The single mode beam quality picosecond pulses with over 150kW peak power open up a variety of micromachining applications such as SiC/Silicon cutting, resistor trimming and marking of transparent material. The laser is completely controlled via an industry standard digital interface with optional DB25 or RS-232.
Applications:
● Silicon or SiC Dicing
● LED Sapphire Substrate Dicing
● Lion Ion Battery Foil Cutting
● Thin Film Solar Cell Scribing
● Metal Marking
● Chrome Vanadium Texturing
● Micromaching of Transparent materials
Features:
● Average Power ~20W
● Pulse Duration 200ps-2ns
● Peak Power 150kW
● Repetition Rate 30kHz-1000kHz
● Pulse Energy 100μJ@2ns or 30uJ@200ps
● M²<1.3
● Burst Mode Function
