Okolab – LEO 2.0

Handheld Multi-Parameter Analyzer for IVF
Precision in your Hand

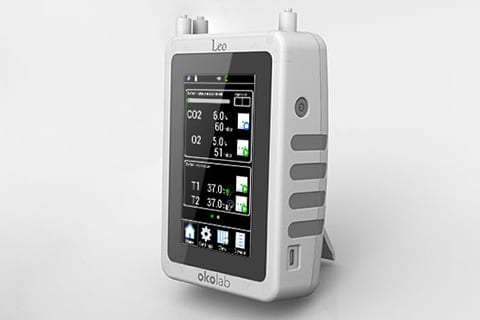

The new LEO 2.0 is an Advanced Solution for Precise and Intuitive IVF Incubator and Laboratory Monitoring. Measure CO2, O2, temperature, VOCppb, humidity, gas flow, and CO2ppm in real time. Switch between Basic and Advanced Modes, save data for each incubator, simplify monitoring with Time Lapse Logging, and take control of normal values.

Dual Operational Modes: Easily switch between Basic and Advanced modes with a single click.
Precision Readings: Ensure accuracy with user-defined measurement setups tailored for each specific incubator model, with selectable sampling flow rate, measurement duration and more. Suggested setups for the most popular incubators are available.
Intuitive Interface: Navigate effortlessly with a user-friendly touch screen interface.
Optional Tube Purge: Automatic step that eliminates the error due to air present in the tubes in gas loop-back incubators.
Alerts and reminders: On-screen guidance aids the embryologist in adhering to protocols to prevent errors.

Optional Sensor Modules: Enhance functionality with a range of available sensor modules to suit your specific needs.

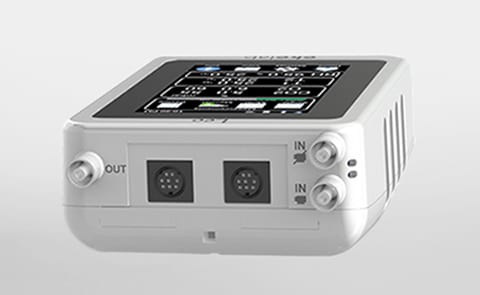

Expandable Sensor Connectivity: Connect up to two optional external sensor modules at the same time.
Time Lapse Logging: Monitor your incubators over extended periods, gathering valuable data to validate performance and enhance culture conditions.
USB OTG Compatibility: Download data directly to a USB flash drive for convenient access and storage.
Seamless Data Analysis: Import and analyze incubator data directly in Excel without the need for additional software or special macros.

Basic Mode

Fast measurements, without needing to select an incubator.
All values are shown live on the Leo 2.0 screen.
Both diffusion and aspiration modes are available, using the pump start/stop button.

Advanced Mode

Offers more comprehensive and detailed control over the evaluation and calibration of IVF incubators.
Empowers the user to accurately measure, gather and analyze data, enhancing their work’s effectiveness.
Enables control of the measurement method and parameters individually, for each one of your incubators.

ON SCREEN GUIDANCE – ADVANCED MODE

ANALYZE DATA-ADVANCED MODE

DEVICE SETTING-ADVANCED MODE

Available Sensor Modules

Sensor modules are calibrated by using traceable standards, and the calibration data is stored in their internal memory. Modules can be delivered with traceable or accredited calibration certificate, and when needed, sent to authorized distributors or to Okolab for re-calibration.

Each sensor can perform single point measurements or logging over time, and can store data in the internal memory of LEO 2.0. The stored data can be displayed on LEO’s screen as a table or graph, or can be downloaded through the micro USB port and analyzed by a simple import in Excel.
