Okolab – UNO Stage Top Incubator

UNO-T-H-CO2

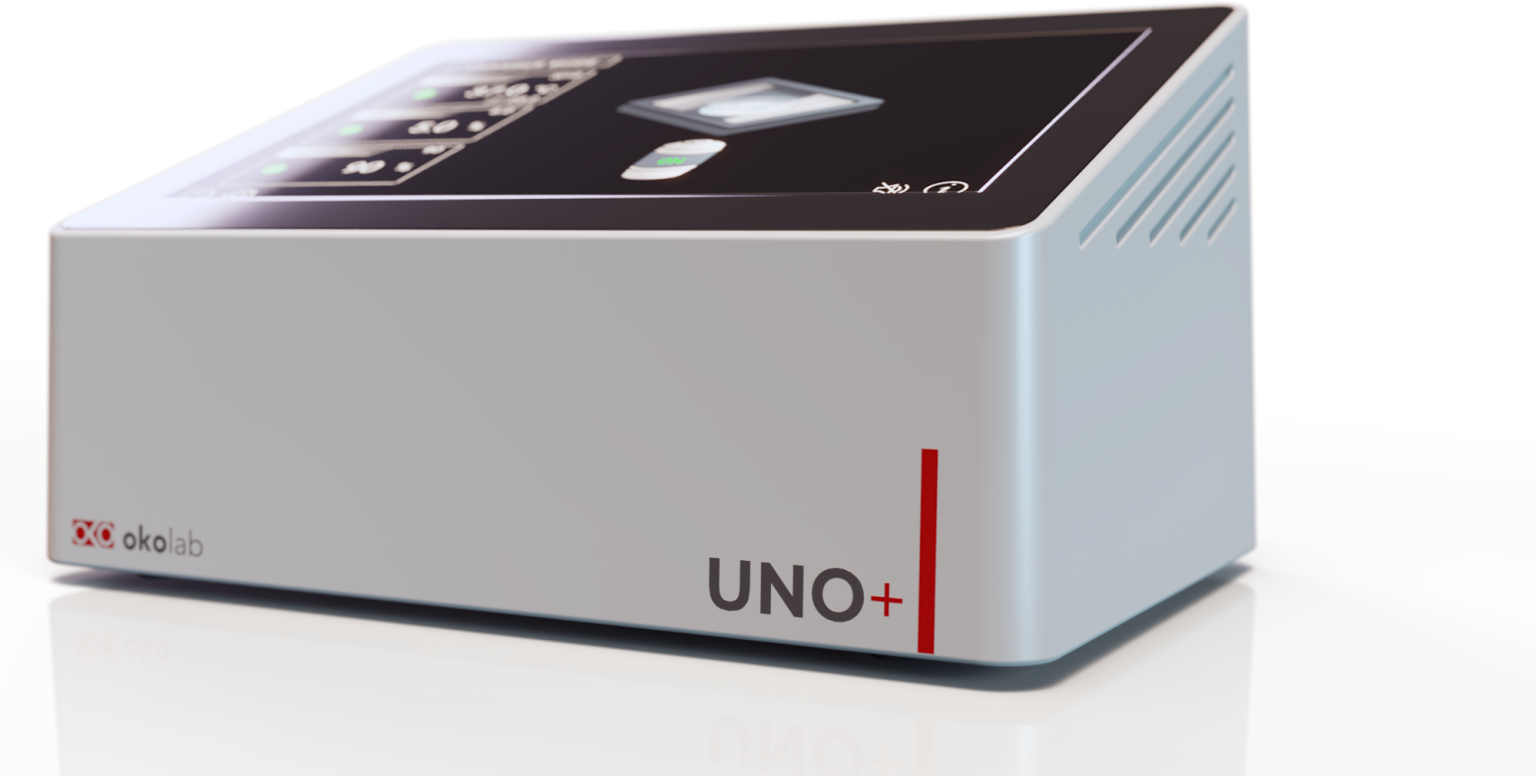

UNO STAGE TOP INCUBATOR ensures the highest temperature accuracy on sample temperature by controlling simultaneously up to 6 independent channels with a modern multichannel controller.

The name “UNO” reflects the simplicity of the system, which allows temperature, humidity and CO2 conditioning in a very user friendly manner.

The controller is equipped with an on-board memory for data logging and a mini-USB port for data download.

UNO-T-H-CO2 is an all-in-one stage top incubator’s controller with 100% CO2/Air mixer, for application with 100% CO2 and background Air, that includes:

  • Uno Stage Top Controller
  • Humidity module
  • CO2/Air gas mixer
  • Air Pump
  • Temperature Range: 25 to 60 °C.
  • Temperature Accuracy:
    • ±0.1°C in sample feedback mode
    • ±0.3°C in camber feedback mode, if room T remains within
  • Pre-mixed gas flow rate can be regulated manually in the range 0.2-0.8 l/min
  • 4.3” touch screen interface
  • On-board memory for data logging and mini-USB port for data download
  • Chambers available for any XY stage / piezo insert with Embedded temperature sensor in heated glass lid and in chamber body
  • Interchangeable magnetic inserts allow to host Petri, Slides and MW Plates
  • Magnetic locks hold the Petri, the Slides and the MW Plates in the correct position inside the chamber
  • Compatible with:
    • OBJ-COLLAR series, recommended for immersion objectives
    • Okolab DATALOG to access Data Logging / Remote Operation on pc
  • TTL communication option: order UNO-T-H-CO2-TTL
