CNI – Lasers System

CNI offers DPSS lasers, Diode lasers and Fiber lasers in wavelengths ranging from deep UV 213nm to mid infrared 4800nm.

261nm@1.5W, 266nm@1.5W, 320nm@4W, 360nm@4W

The products are widely used for scientific research, semiconductor wafer inspection, equipment manufacturing, biomedical experiment, precision measurement, entertainment, communication,material processing,process control,online detection,investigation equipment and many other fields.



Different Performance Lasers

High stability laser / Low noise laser / Single longitudinal mode laser / High-frequency  modulation laser / Q-switched laser /High power laser / High energy laser/ Nanosecond Laser / Sub-nanosecond Laser / Picosecond Laser / Multi-wavelength laser / Tunable laser/ Special wavelength laser / OEM aser and laser module / Femtosecond Laser

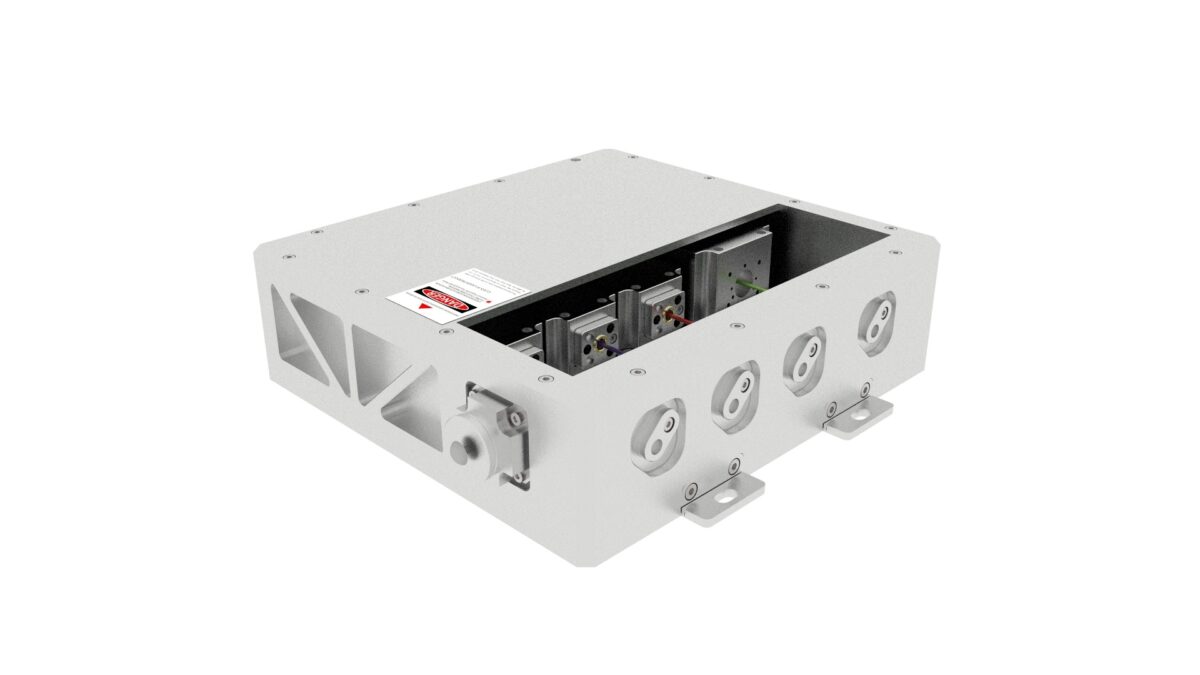

CNI – Fiber Coupled Lasers & LEDs

CNI offers comprehensive fiber-coupled light source solutions, supporting a wide range of fiber types including MM fibers (50–1000μm), SM, PM, liquid-core, and homogenizing fibers. The product portfolio encompasses single-wavelength and multi-wavelength systems (2-20 wavelengths) with optional USB or RS232 interfaces.

Additionally, CNI provides customization services.

See More

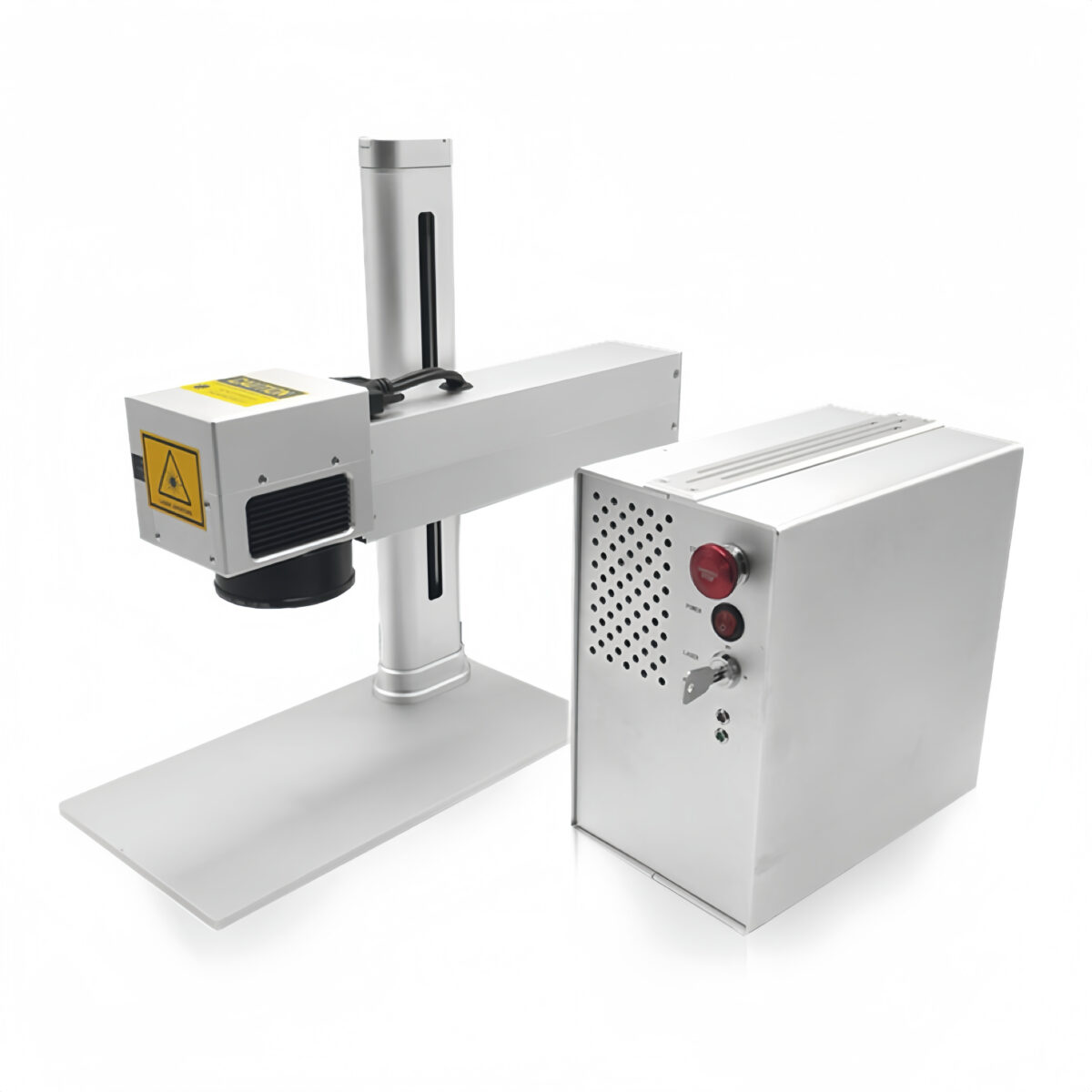

CNI – Laser Marking System

CNI is dedicated to offer best quality laser source and laser marking machine with short pulse duration, high peak power, cost-effectiveness and high fine precise marking lines.Compared to traditional marking, the process is more efficient, non-tactile and without any mechanical stress, which is suitable for various marking fields such as diamond, metal, steel, IC, plastics, package, logo, etc. Besides, we can provide Raman spectrometer for Jewelry identification.

See More

Photon Systems – Deep UV Lasers

Deep ultraviolet for less. The DUV family of lasers offer 224.3 nm and 248.6 nm for fraction of the cost of the competition. The laser is the size, weight and power consumption of a HeNe laser but with output in the deep UV.

The self-contained, integrated, laser controller enables remote computer control for ease of operation and flexible data collection via LabView software. With an input power less than 10 W the need for water cooling and other thermal management issues is eliminated.

The lasers reach full power in less than 20 microseconds from a cold start from any ambient temperature from -200 to 100 C without preheating or temperature regulation. With output over 100mW and linewidths less than 3GHz or 0.0005nm these are great sources for a wide range of applications.

Nanoscribe – Quantum X

World’s first Two-Photon Grayscale Lithography system for maskless microfabrication of refractive and diffractive microoptics

Two-Photon Grayscale Lithography

This breakthrough technology combines additive microfabrication with ultra-fast voxel size tuning: Two-Photon Grayscale Lithography (2GL) paves the way for ultra-fast, accurate and free-form microfabrication without compromising speed or accuracy.

Quantum X controls the voxel size along one scanning plane using synchronized laser power modulation at high speeds. In this manner, complex shapes are produced and variable feature heights are achievable within one scan field. Discrete and accurate steps as well as essentially continuous topographies can be printed on up to six-inch wafer substrates without the need for additional lithography steps or mask fabrication.

The Quantum X wizard guides you through the print job creation. The integrated software accepts grayscale images of up to 32-bit resolution for direct fabrication with 2GL. Diffractive and refractive microoptics in 2D and 2.5D materialize with smooth surfaces and high shape accuracy.

YSL Mode Locked SC

YSL Photonics ’SC-Pro-M is the latest supercontinuum source with a seed source pulse duration of 6ps. It delivers a wide spectral output ranging from 410nm to 2400nm with over 7W total power. The optional 10kHz to 40MHz repetition rate capability also makes it an ideal source for the applications such as low noise OCT,fluorescence microscopy, nanophotonics and etc.

Applications:
•  OCT
•  Fluorescence Spectroscopy and Microscopy
•  Nanophotonics
•  Super-Resolution Imaging
•  Photocurrent microscopy

Features:
•  Wavelength: 410nm-2400nm
•  Total power: 7W
•  Repetition Rate: 80MHz
•  Seed source pulse duration: ~6ps
•  Single-Mode Output

Andor iKon-M 912

Andor’s back-illuminated iKon M 912 camera offers the ultimate in dynamic range and photon sensitivity, by virtue of a large 24 μm, high well depth pixel architecture. The camera also offers a QEmax of 95% and exceptionally low readout noise.

The iKon-M 912 benefits from negligible dark current with industry-leading thermoelectric cooling down to -100°C, enabling use of significantly longer exposure times than offered by any other camera on the market using this same sensor. The iKon-M platform offers Multi-Megahertz readout for more rapid acquisition or fast focusing, along with direct USB 2.0 connectivity to PC.

  • 300,000 e- well depth
  • TE cooling to -100°C
  • QE max > 90 °C from back-illuminated sensor
  • Ultra low noise readout
  • Multi-Megahertz pixel readout
  • UltraVac™

Andor iKon-M 934

Andor’s iKon-M 934 series cameras are designed to offer the ultimate in high-sensitivity, low noise performance, ideal for demanding imaging applications. These high resolution 1024 x 1024 CCD cameras boast up to 95% QEmax, high dynamic range, 13 μm pixels and exceptionally low readout noise. The iKon-M benefits from negligible dark current with industry-leading thermoelectric cooling down to -100°C.

The ‘Deep Depletion’ sensor option offers ultimate performance for NIR applications, the new Dual AR coating extends the QE performance significantly across the UV/visible region of the spectrum for the broadest possible spectral coverage from one sensor. Fringe Suppression Technology™ radically minimizes etaloning effects in the NIR. Rapid vertical shifts combined with fast kinetics acquisition mode, comprehensive trigger modes and custom coated wedge window options, render the deep Depletion models ideal for NIR optimized Bose Einstein Condensation applications.

Suntech – Oscar 2 Ambulatory Blood Pressure Monitor

The Oscar 2™ Ambulatory Blood Pressure Monitor from SunTech Medical® is the gold standard in 24-hour ambulatory blood pressure monitoring (ABPM). By providing valuable diagnostic information that in-clinic and home blood pressure monitoring systems are incapable of measuring, the Oscar 2 system delivers a patient-focused solution with unsurpassed comfort, data reliability and confidence.

The Oscar 2 ABP Monitor is independently tested to meet the accuracy and performance requirements of the British Hypertension Society, the European Society of Hypertension International and the AAMI-SP10 standards. This system comes standard with both the patented Orbit™ ABPM cuffand interpretive software AccuWin™ Pro 4.

The Oscar 2 24-HR Ambulatory Blood Pressure Monitor NOW features options to combine our patented motion-tolerant technology with the gold standard in central blood pressure and arterial stiffness measurement from AtCor Medical and a Bluetooth-connected patient diary mobile app called True24.
