The AvaSpec-HERO is the answer for those who are in need of high-resolution and high sensitivity! This spectrometer combines the best of both worlds, so no compromise is needed.
The AvaSpec-HERO is built around our High-Sensitivity, Compact (HSC), 100mm optical bench offering a NA of 0.13 and a cooled, back-thinned detector (1024×58 pixels). Electronics-wise, it uses our latest AS7010 board, which includes a high-performance analog-to-digital converter with excellent noise performance and the ability of high-speed communication through USB 3.0 and Ethernet.
The combination of these two state-of-the-art components will give you an excellent instrument, offering the ideal balance between sensitivity and resolution and the capability of using longer integration times in low-light applications yet ensuring perfect signal-to-noise performance, transferred by the latest communication standards. A real HERO for your application! Find out why a recent OEM customer from the food industry had this to say:
We knew almost right away after using the HERO that it’s a superior instrument, but it is becoming even more apparent just how much better it is in virtually every aspect of performance.
The Avaspec-HERO is suitable for use with replaceable slits, offering optimum flexibility for various applications. The combination of all the above features makes the AvaSpec-Hero your ideal companion for all your spectroscopic measurements.
The AvaSpec-ULS2048x64TEC-EVO is an updated version of our AvaSpec-ULS2048x64TEC spectrometer with improved electronics and cooling.
This instrument enhances the SensLine series with its cooled, back-thinned detector. The back-thinned detector has a high level of sensitivity in the UV and IR regions. The 64-pixel height (0.89 mm) enables catching as many photons as possible, while the cooling allows for long integration times of up to 120 seconds with low noise levels.
The instrument features a Peltier cooling device integrated into our exclusive ultra-low stray-light optical bench, which can reduce the temperature of the CCD chip to -30°C against ambient, significantly improving the dark baseline and PRNU level. The detector cooling also reduces the dark noise by a factor of 2-3.
Combining exceptional quantum efficiency with high-speed communication is the value proposition of the AvaSpec-ULS2048XL EVO spectrometer. Unlike many back-thinned CCD spectrometers with two-dimensional arrays, the ULS2048XL-EVO has large monolithic pixels of 14×500 microns with exceptional efficiency in the UV range, from 200 to 400 nm, and the NIR range, from 950 to 1160 nm.
The instrument also has an electronic shutter, which enables integration times as low as 2 microseconds. To further enhance sensitivity, a detector collection lens is available, which improves sensitivity up to 60% when combined with larger core fibers.
For high-sensitivity applications where high resolution is not of paramount concern, the AvaSpec-HS2048XL-EVO is an exceptional instrument.
Featuring Avantes’ HS optical bench, which has a full 0.22 numerical aperture for superior throughput, the AvaSpec-HS2048XL has a back-thinned CCD detector with 2048 pixels measuring 14×500 microns.
The AvaSpec-HS2048XL-EVO uses our AS-7010 electronics board offering USB3 (10 times faster than USB2), Gigabit Ethernet, and better signal processing.
Alongside the cooled AvaSpec-ULS2048x64TEC-EVO with a low-noise detector, Avantes also offers the uncooled AvaSpec-ULS2048x64-EVO. With its standard 2048×64 back-thinned detector, this spectrometer is perfect for less demanding applications in the UV and NIR ranges.
The cooling option is often unnecessary for applications that require integration times lower than 2 seconds. For example, this uncooled AvaSpec-ULS2048x64-EVO has an established track record in various DOAS(Differential optical absorption spectroscopy) applications worldwide because of its high UV response and 0.9mm detector height that enables detecting the wavelengths of interest.
Options include an order-sorting filter to reduce second-order effects and purge ports for deep-UV measurements. The AvaSpec-ULS2048x64-EVO comes with a wide range of slit sizes and gratings and can be configured with SMA or FC/PC fiber-optic entrance connectors.
The AvaSpec-ULS2048x64-EVO uses the AS-7010 electronics board offering USB3 (10 times faster than USB2), Gigabit Ethernet, and better signal processing.
Connection to your PC is handled via USB3 connection or Ethernet, delivering a scan every two milliseconds. The instrument comes complete with AvaSoft-Basic software, a USB cable, and an extensive manual.

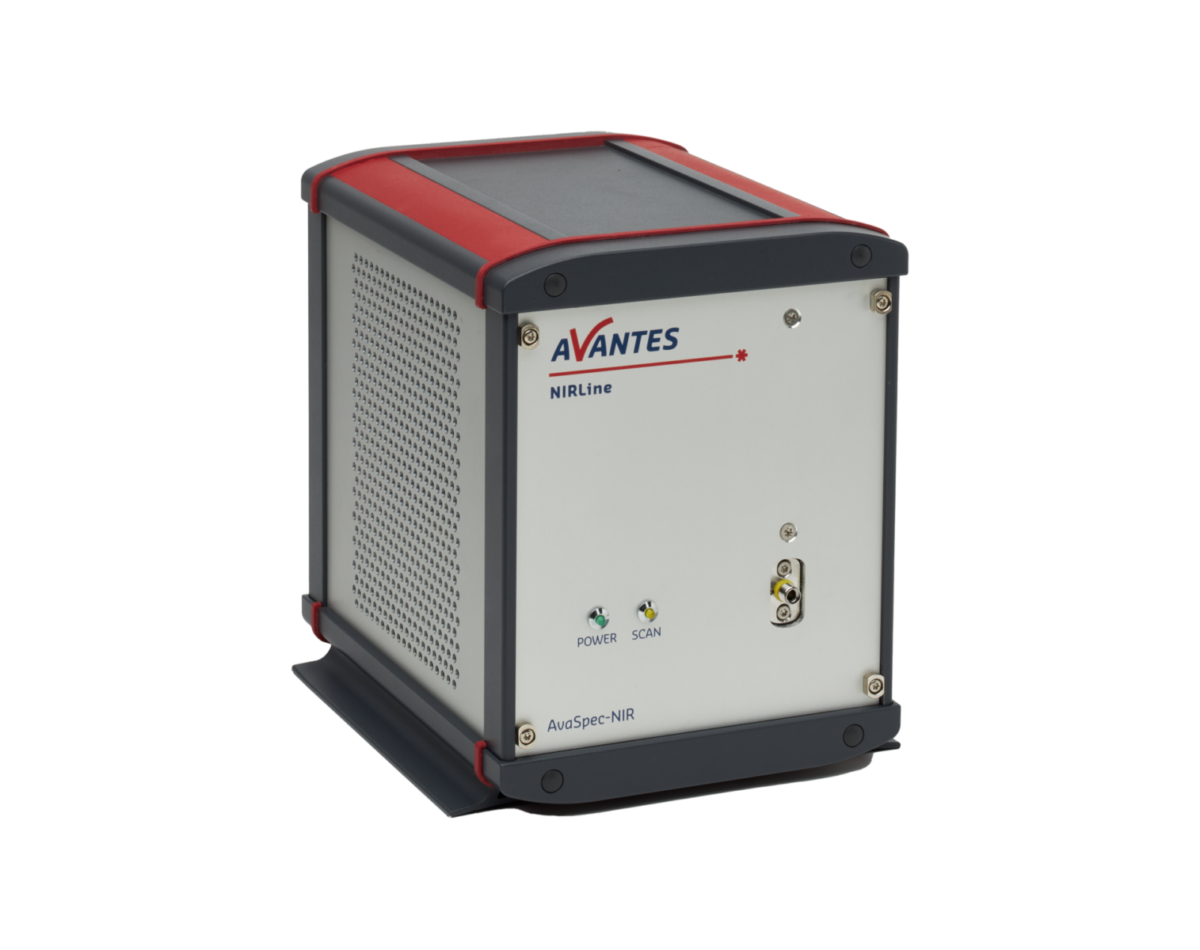

For measurements in the near-infrared range up to 1.7 µm, Avantes offers a new series of uncooled spectrometer configurations. The AvaSpec-NIR256-1.7-EVO and the AvaSpec-NIR512-1.7-EVO offer the same high-sensitivity optical bench, but with the next generation of electronics. Both instruments deliver the same exceptional performance specifications, such as a sample speed of only 0.53 ms/scan and integration times as fast as 10 µs, as the Avantes instruments you have come to trust.
For applications where resolution is key, or more datapoints for modelling are required, the 512 pixel detector will be the best choice.
The AvaSpec-NIR256/512-1.7-EVO spectrometers pair the same trusted InGaAs array detectors with our ultra low-noise electronics board featuring USB3 and Giga-Ethernet connection port. Digital and analogue I/O ports enable external triggering and control over the shutter and pulsed light sources and choose from two distinct software-controlled gain-setting modes, high-sensitivity mode (HS, default) and the low-noise mode (LN).
These affordable, uncooled instruments are USB powered and are available with a choice of four gratings and replaceable slit options to match the bandwidth and requirements fitting your application.
Did you know the AvaSpec-NIR257-1.7 has a little brother? Our new AvaSpec-Mini-NIR uses the same detector as its bigger counterpart, but in a much smaller package. This makes it perfect for OEM use and integration into handheld devices.
For measurements in the near-infrared range up to 1.7 µm, Avantes offers a series of cooled spectrometer configurations. The AvaSpec-NIR256-1.7-HSC-EVO and the AvaSpec-NIR512-1.7-HSC-EVO offer the high-sensitivity 100mm optical bench (HSC) with the next generation of electronics (EVO).
Both instruments deliver exceptional performance specifications, such as a high sample speed and integration times as fast as 20 μs, as the Avantes instruments you have come to trust. For applications where resolution is key or more data points for modeling are required, the 512-pixel detector will be the best choice.
The AvaSpec-NIR256/512-1.7-HSC-EVO spectrometers pair the same trusted InGaAs array detectors with our ultra-low-noise electronics board, featuring a USB3 and Giga-Ethernet connection port. The instruments are equipped with a Replaceable Slit. Digital and analog I/O ports enable external triggering and control over the shutter and pulsed light sources. Choose from two distinct software-controlled gain-setting modes: high-sensitivity mode (HS, default) and low-noise mode (LN).
Cooling ensures optimum noise conditions, even at longer integration times. All NIR-1.7 instruments are available with a choice of four different gratings, making it possible to choose the bandwidth fitting your application.
For measurements in the near-infrared range up to 1.7 µm, Avantes offers a new series of uncooled spectrometer configurations. The AvaSpec-NIR256-1.7-EVO and the AvaSpec-NIR512-1.7-EVO offer the same high-sensitivity optical bench, but with the next generation of electronics. Both instruments deliver the same exceptional performance specifications, such as a sample speed of only 0.53 ms/scan and integration times as fast as 10 µs, as the Avantes instruments you have come to trust.
For applications where resolution is key, or more datapoints for modelling are required, the 512 pixel detector will be the best choice.
The AvaSpec-NIR256/512-1.7-EVO spectrometers pair the same trusted InGaAs array detectors with our ultra low-noise electronics board featuring USB3 and Giga-Ethernet connection port. Digital and analogue I/O ports enable external triggering and control over the shutter and pulsed light sources and choose from two distinct software-controlled gain-setting modes, high-sensitivity mode (HS, default) and the low-noise mode (LN).
These affordable, uncooled instruments are USB powered and are available with a choice of four gratings and replaceable slit options to match the bandwidth and requirements fitting your application.
Did you know the AvaSpec-NIR257-1.7 has a little brother? Our new AvaSpec-Mini-NIR uses the same detector as its bigger counterpart, but in a much smaller package. This makes it perfect for OEM use and integration into handheld devices.
The PeakSeeker by Raman Systems is our most practical and easy-to-use Raman spectrometer. It is an excellent choice for users who want a full featured Raman spectrometer but have a limited budget.
Desktop L-PeakSeeker – The Ideal System For Teaching Laboratories And Routine Analysis
The PeakSeeker is extremely versatile for measuring multiple sample types. User friendly software and USB connectivity enables truly plug and play operation. Sampling accessories include a vial holder for liquids and powders. The PRB-HLD is a rack and pinion track stand that provides fine vertical adjustment for precision positioning of the fiber optic probe over solid samples placed on its baseplate. The fiber optic probe accesses remote samples and also interfaces to the microscopy accessories; the RSM Microscope and the MSK Microscopy Kit.
The PeakSeeker Pro represents the state-of-the-art for an accurate, cost-effective and easy-to-use Raman spectrometer. The premier instrument in the Raman Systems line utilizes TE-cooled, high efficiency CCD detector arrays, and is available with either a 532 nm or 785 nm laser.The PeakSeeker by Raman Systems is our most practical and easy-to-use Raman spectrometer. It is an excellent choice for users who want a full featured Raman spectrometer but have a limited budget.
Desktop H-PeakSeeker Pro – Raman Systems Most Versatile System
PeakSeeker Pro is extremely versatile for measuring multiple sample types. The model PRO-785 offers high resolution in the the Raman fingerprint region of organic molecules. See our FAQ answer comparing medium resolution vs. high resolution Raman spectrometers. User friendly software and USB connectivity enables truly plug and play operation. Sampling accessories include a vial holder for liquids and powders. The PRB-HLD is a rack and pinion track stand that provides fine vertical adjustment for precision positioning of the fiber optic probe over solid samples placed on its baseplate. The fiber optic probe accesses remote samples and also interfaces to the microscopy accessories; the RSM Microscope and the MSK Microscopy Kit.
